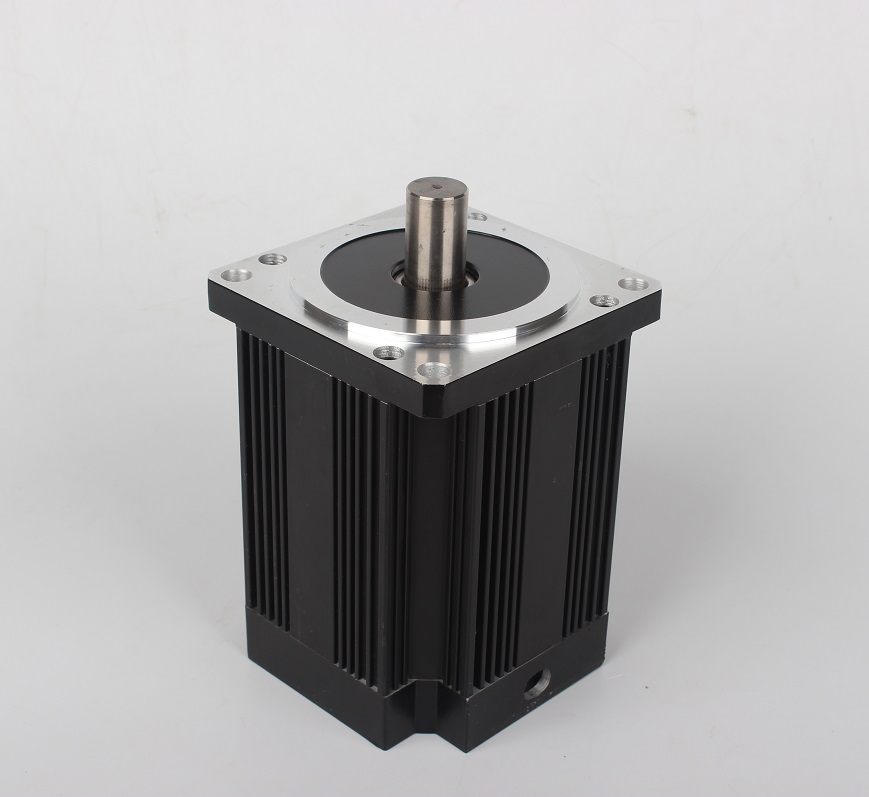

FY110BLF110 Brushless dc motor, voltage include 48v, 310v, because of it’s high torque, it is mainly use in heavy duty application. Performance can be customized according to different customers’ requirements.
| Model | 110BLF40-430 | 110BLF70-430 | 110BLF110-630 | 110BLF130-630 |
| Number of Poles | 8 | |||
| Number of Phases | 3 | |||
| Nominal voltage VDC | 310 | 310 | 310 | 310 |
| Rated speed RPM | 3000 | |||
| Rated Torque N-m | 1.6 | 3.2 | 6.4 | 9.6 |
| Rated Current Amps | 2 | 4.1 | 8.2 | 13 |
| Output Power Watts | 500 | 1000 | 2000 | 3000 |
| Peak Torque N-m | 5 | 10 | 20 | 30 |
| Peak Current Amps | 6 | 13 | 25 | 39 |
| Torque constant N-m/A | 0.79 | 0.79 | 0.79 | 0.74 |
| Back EMF VIk RPM | 57.7 | 55 | 55 | 55 |
| Rotor inertia kg·mm | 380 | 730 | 1100 | 1400 |
| Body Length（L）mm | 80 | 110 | 140 | 170 |
| Mass kg | 3.5 | 4.5 | 7 | 9.5 |
Changzhou Fangya International Co., Ltd., located in Changzhou, Jiangsu Province, was founded in 2009.
It is the manufacturer for dc brushless motor, dc brushed motor, gear motor, servo motor, motor parts, motor controller, etc.
У нас есть собственная научно-исследовательская и техническая команда, которая объединяет предпродажную и послепродажную подготовку, чтобы предоставить клиентам идеальную техническую поддержку и обслуживание.
Changzhou Fangya electrical technology Co., Ltd., located in Changzhou, Jiangsu Province, was founded in 2009. Products include fans and motors, both brushed and brushless.
