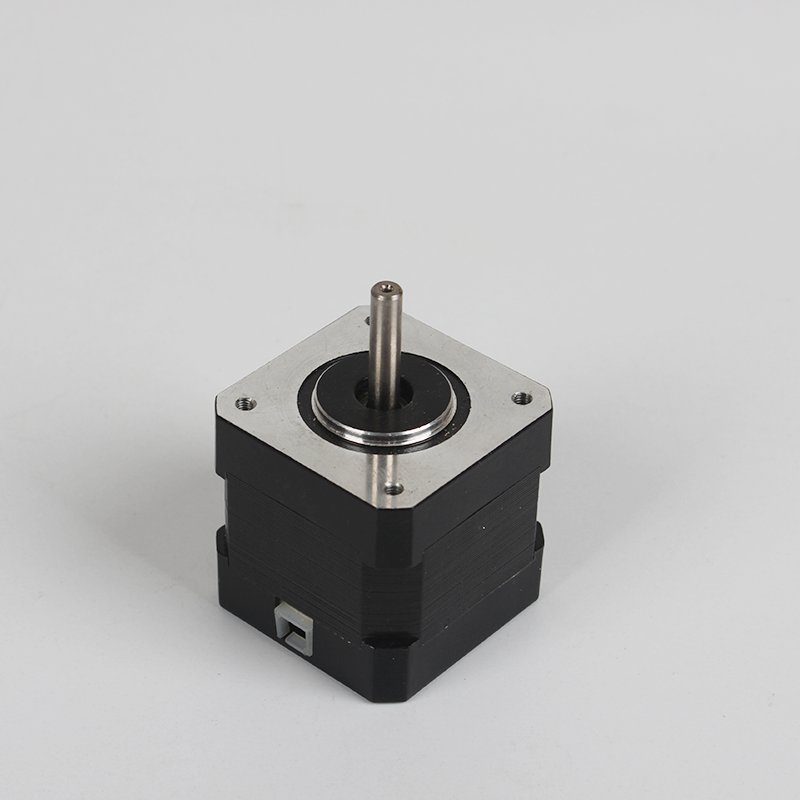

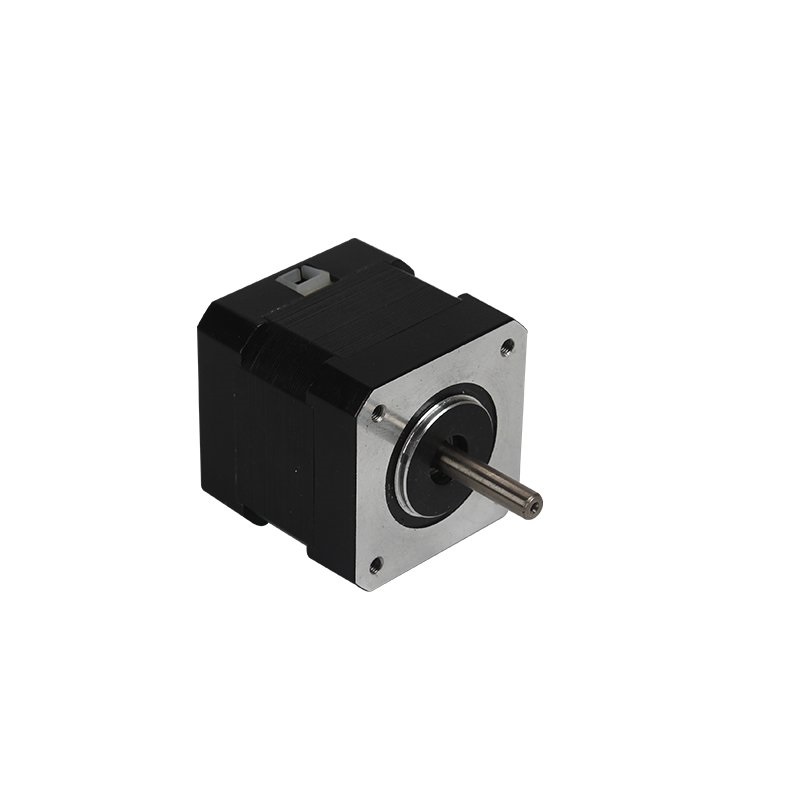

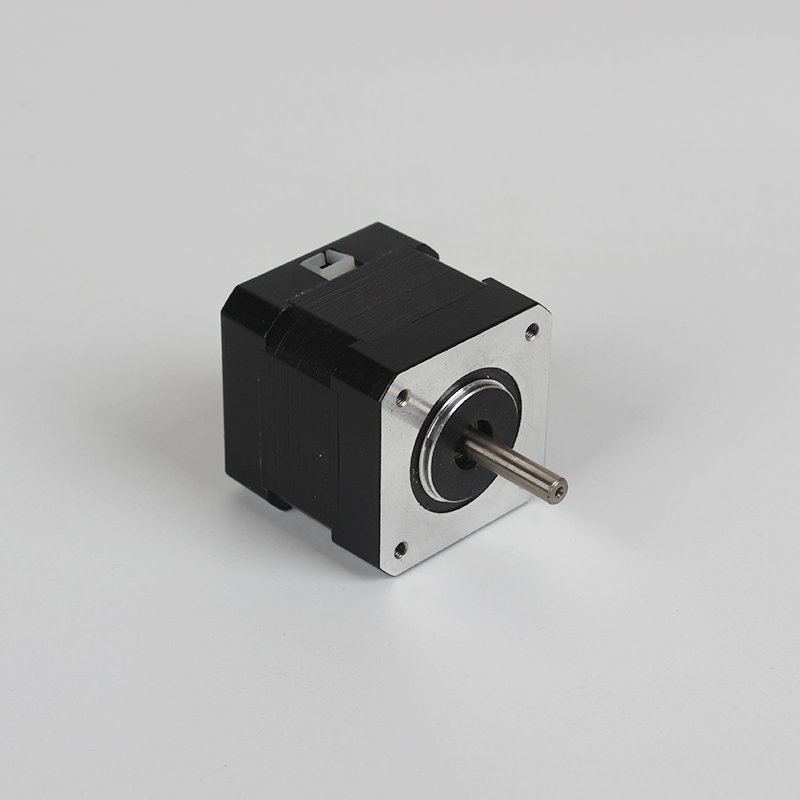

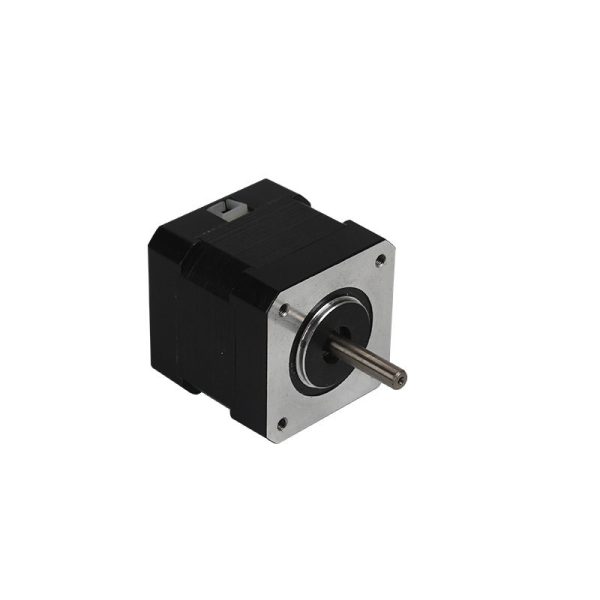

42BLF20 Brushless dc motor, voltage include 12v, 24v, 36v and 48v, it is widely used in different industrial application and home application, like electric tools, medical machinery, farm machinery, robot arm, AGV , etc. Performance can be customized according to different customers’ requirements.
| Specification | Unit | 42BLF20 | 42BLF40 | 42BLF60 | 42BLF80 |
| Number Of Phase | Phase | 3 | |||
| Number Of Poles | Poles | 8 | |||
| Rated Voltage | VDC | 24 | |||
| Rated Speed | Rpm | 4000 | |||
| Rated Torque | N.m | 0.0625 | 0.125 | 0.185 | 0.25 |
| Rated Current | Amps | 1.8 | 3.3 | 4.8 | 6.3 |
| Rated Power | W | 26 | 52.5 | 77.5 | 105 |
| Peak Torque | N.m | 0.19 | 0.38 | 0.56 | 0.75 |
| Peak Current | Amps | 5.4 | 10.6 | 15.5 | 20 |
| Back E.M.F | V/Krpm | 4.1 | 4.2 | 4.3 | 4.3 |
| Torque Constant | N.m/A | 0.039 | 0.04 | 0.041 | 0.041 |
| Rotor Inertia | g.c㎡ | 24 | 48 | 72 | 96 |
| Body Length | mm | 41 | 61 | 81 | 100 |
| Weight | Kg | 0.3 | 0.45 | 0.65 | 0.8 |
