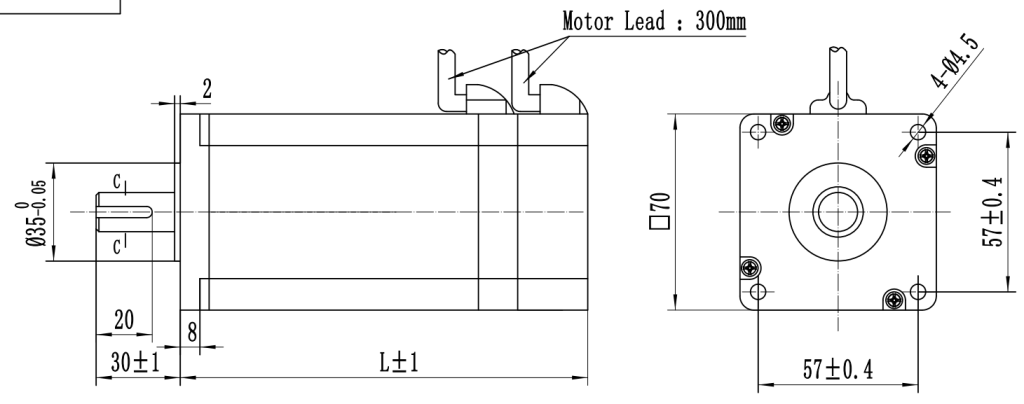

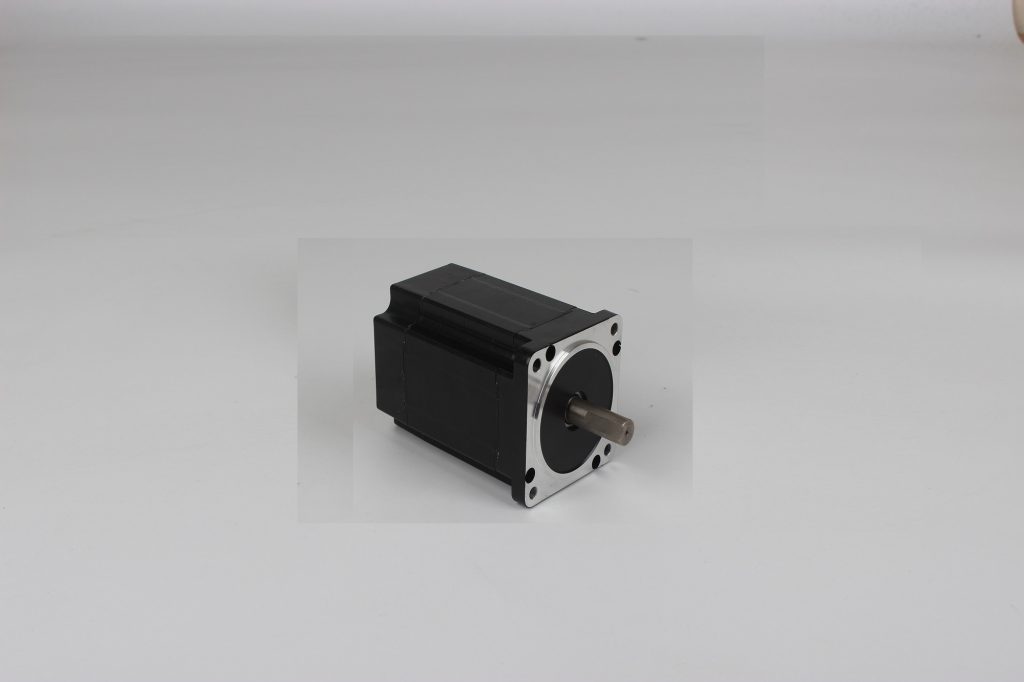

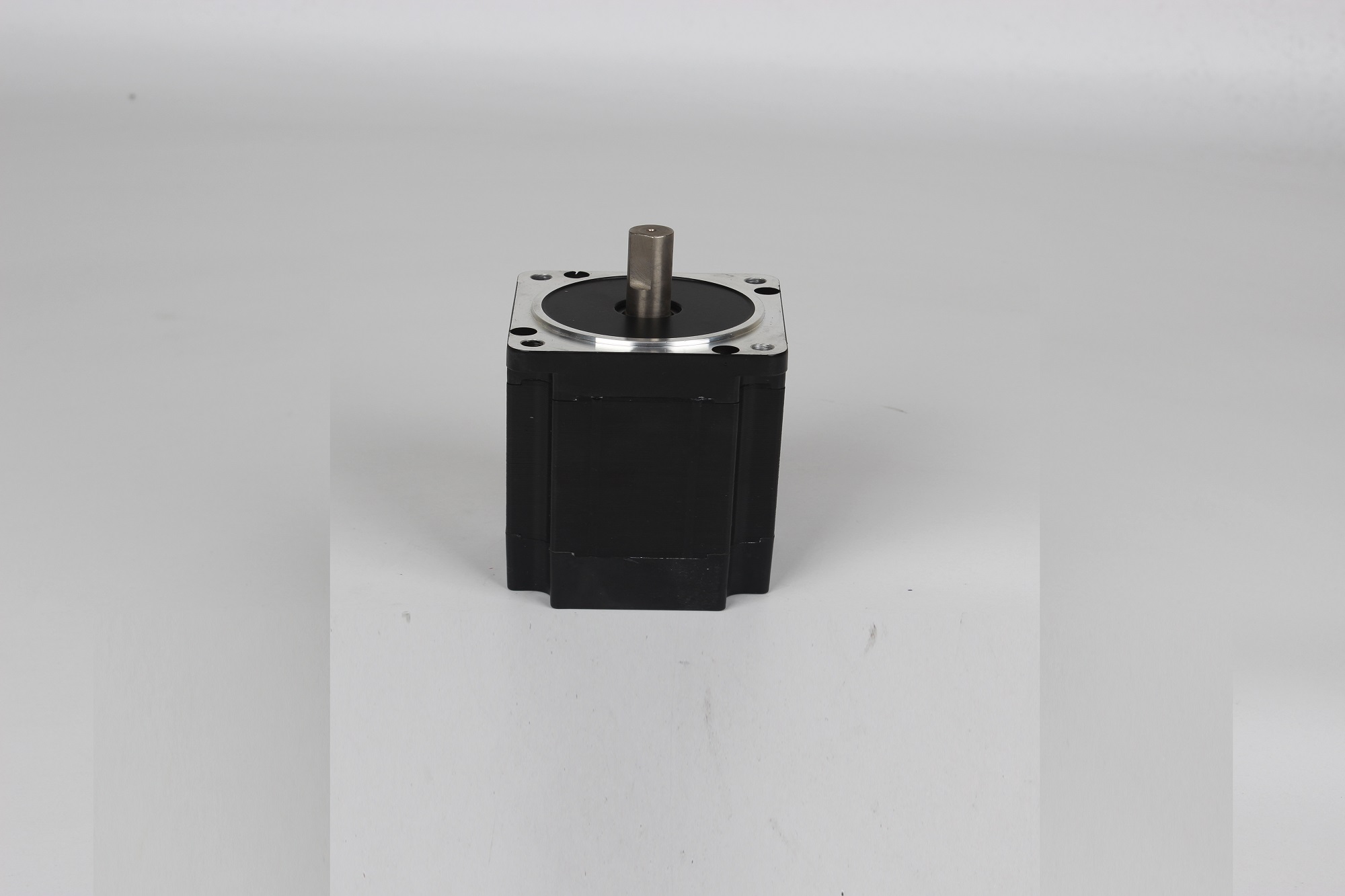

FY70BLF36 70mm 24V 36V 48V 0.5N.m brushless dc motor, it is widely used in different industrial application and home application, like electric tools, medical machinery, farm machinery, robot arm, AGV , etc. Performance can be customized according to different customers’ requirements.
| Model | Voltage | speed | Torque | Current | Power | Peak Torque | Torque constant | V/kRPM | Rotor inertia | Body Length | Mass |
| 70BLF36 | 24 | 3000 | 0.5 | 8.8 | 157 | 1.5 | 0.056 | 4.6 | 55 | 86 | 1.3 |
| 70BLF66 | 24 | 3000 | 1 | 17.6 | 314 | 3 | 0.056 | 4.5 | 110 | 116 | 2.1 |
| 70BLF96 | 48 | 3000 | 1.5 | 13.1 | 471 | 4.5 | 0.115 | 9.1 | 148 | 136 | 2.8 |
