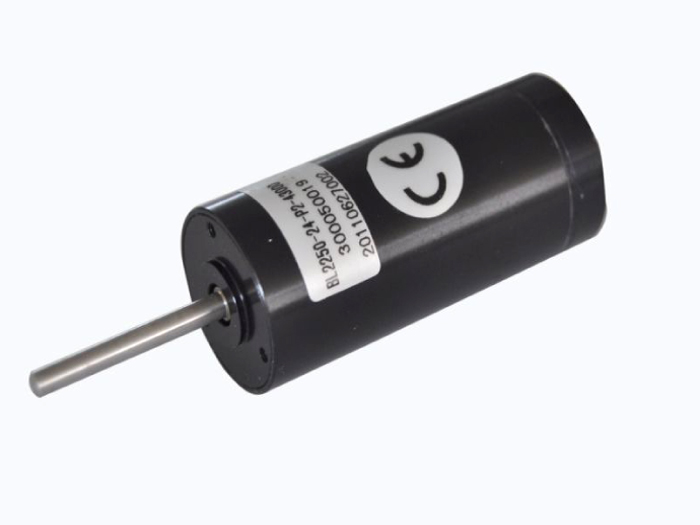

BL2250 high speed coreless Brushless dc motor, voltage include 12v, 24v, 36v and 48v, because of it’s high speed and smoothly running, it is widely used in high precision machine, like CNC, spindle system, carving machine, printing machine, robot arm, AGV , etc. Performance can be customized according to different customers’ requirements.
| Input voltage | V | 24 |
| Noload speed | RPM | 40000 |
| Noload current | A | 0.28 |
| Resistance | Ω | 0.9 |
| Max output power | W | 156.77 |
| Efficiency | % | 80.88 |
| Torque constant | mNm/A | 5.67 |
| Peak torque | mNm | 149.71 |
| Back EMF | mV/rpm | 0.54 |
| Speed constant | rpm/V | 1683 |
| Friction torque | mNm | 1.53 |
| Current constant | A/mNm | 0.17 |
| Rotor inertia | gcm² | 4.5 |
| Weight | g | 91 |
