LNF0824S-WS 24V 8inch brushless dc axial fan

LNF0824S-WS 24V 8inch brushless dc axial fan/ Condenser fan in blowing, it has impact size, long service life.

Fast delivery: 1 week for sample and 2 weeks for bulky.

Both pusher and puller are options.

The parameter can be customized according to your special requirements.

Main Features of the Product

Feature of LNF0824S-WS 24V 8inch brushless dc axial fan

No.	Item	Data
1	Voltage	24V
2	Power	85W
3	Amps	4A
4	Speed	3500rpm
5	Airflow	700m³/h
6	Diameter	200mm
7	Waterproof	IP63/IP67

Dimension of LNF0824S-WS 24V 8inch brushless dc axial fan

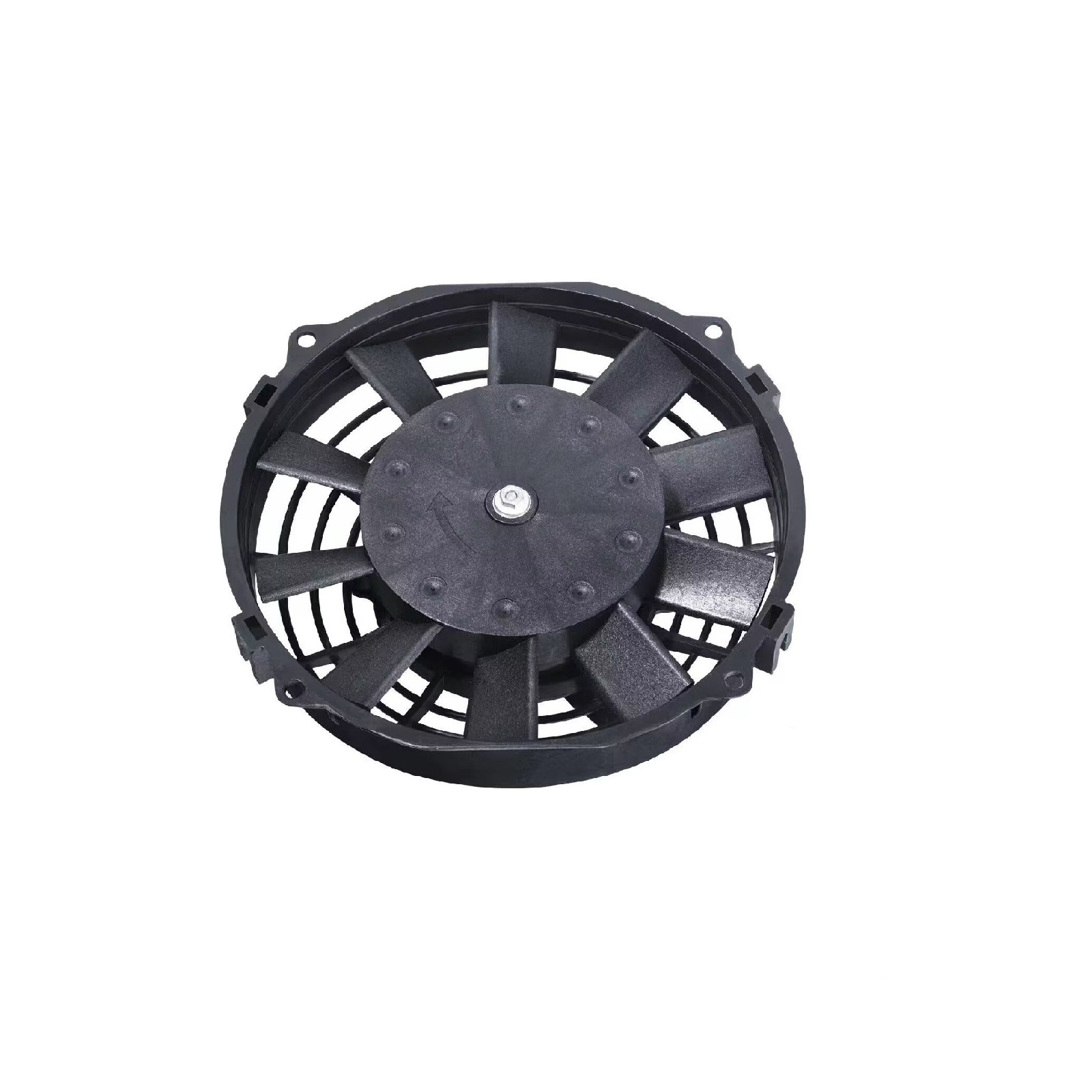

Image of LNF0824S-WS 24V 8inch brushless dc axial fan

Performance curve of LNF0824S-WS 24V 8inch brushless dc axial fan

24V	LNF0824S-WS
D.C – C.C.	blowing-saffiante
Static
Pressure	Airflow	Current
Pressione	Portata	Corrente
Statica
in H2O	m³/h	A
0	654.04	2.93
5	491.04	2.98
10	370.89	2.81
15	267.48	3.03
