LNF0812S 12V 8inch pusher brush dc cooling fan

12V 8inch Brush DC cooling Fan / Axial Fan/ Condenser fan in blowing, it has impact size, long service life.

Fast delivery: 1 week for sample and 2 weeks for bulky.

Both pusher and puller are options.

The parameter can be customized according to your special requirements.

Main Features of the Product

Feature of LNF0812S 12V 8inch brush dc cooling fan

No.	Item	Data
1	Voltage	12V
2	Power	85W
3	Amps	7A
4	Speed	3500rpm
5	Airflow	700m³/h
6	Diameter	200mm
7	Waterproof	IP63/IP67

Dimension of LNF0812S 12V 8inch brush dc cooling fan

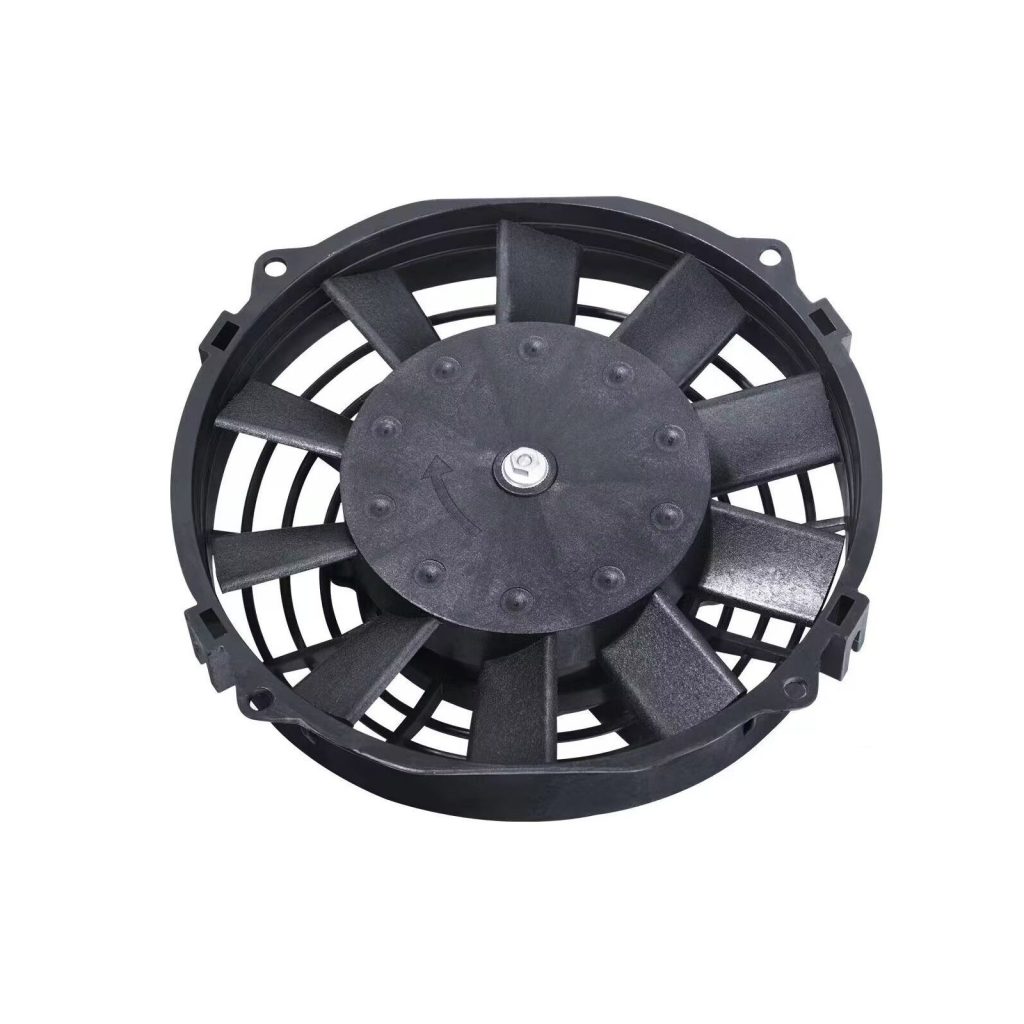

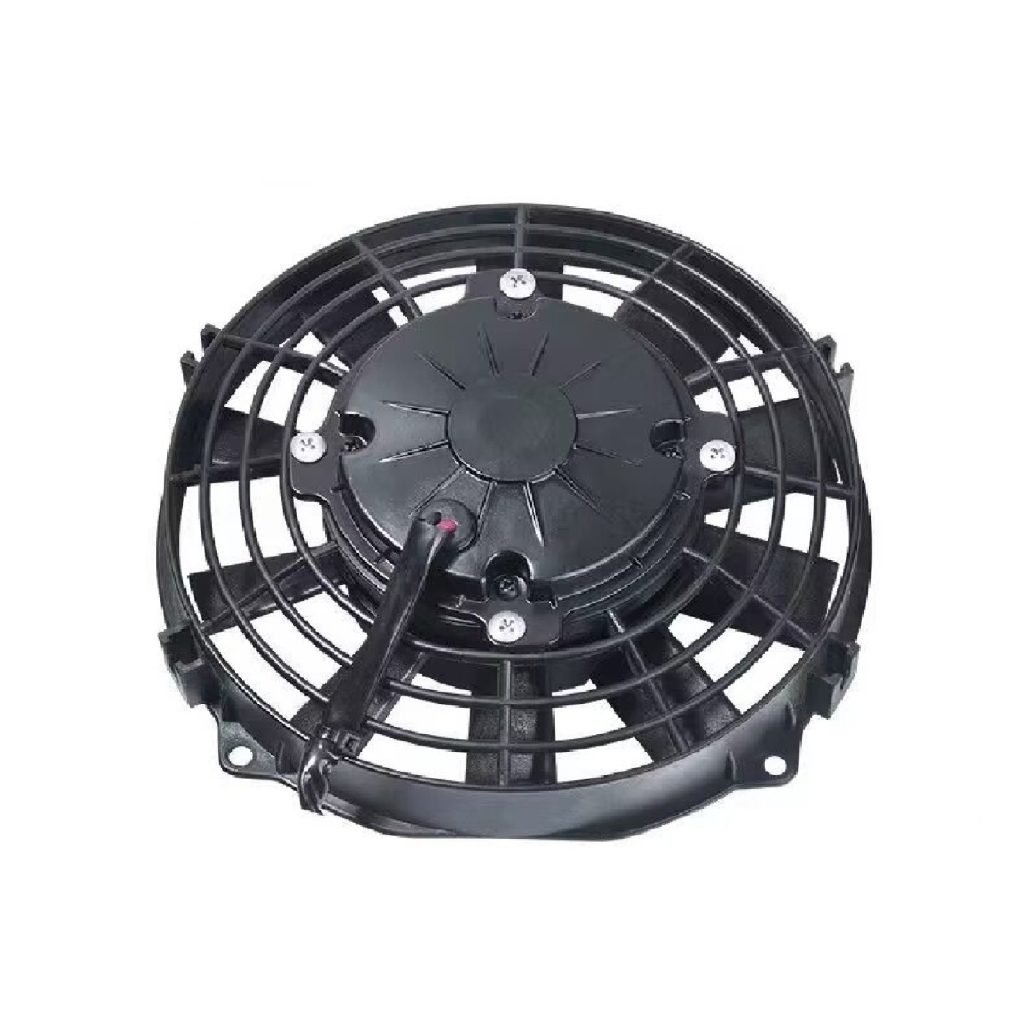

Image of LNF0812S 12V 8inch brush dc cooling fan

Performance curve of LNF0812S 12V 8inch brush dc cooling fan

12V	LNF0812S
D.C – C.C.	blowing-saffiante
Static
Pressure	Airflow	Current
Pressione	Portata	Corrente
Statica
mm H2O	m³/h	A
0	663.22	5.49
5	473.35	5.68
10	397.14	5.68
